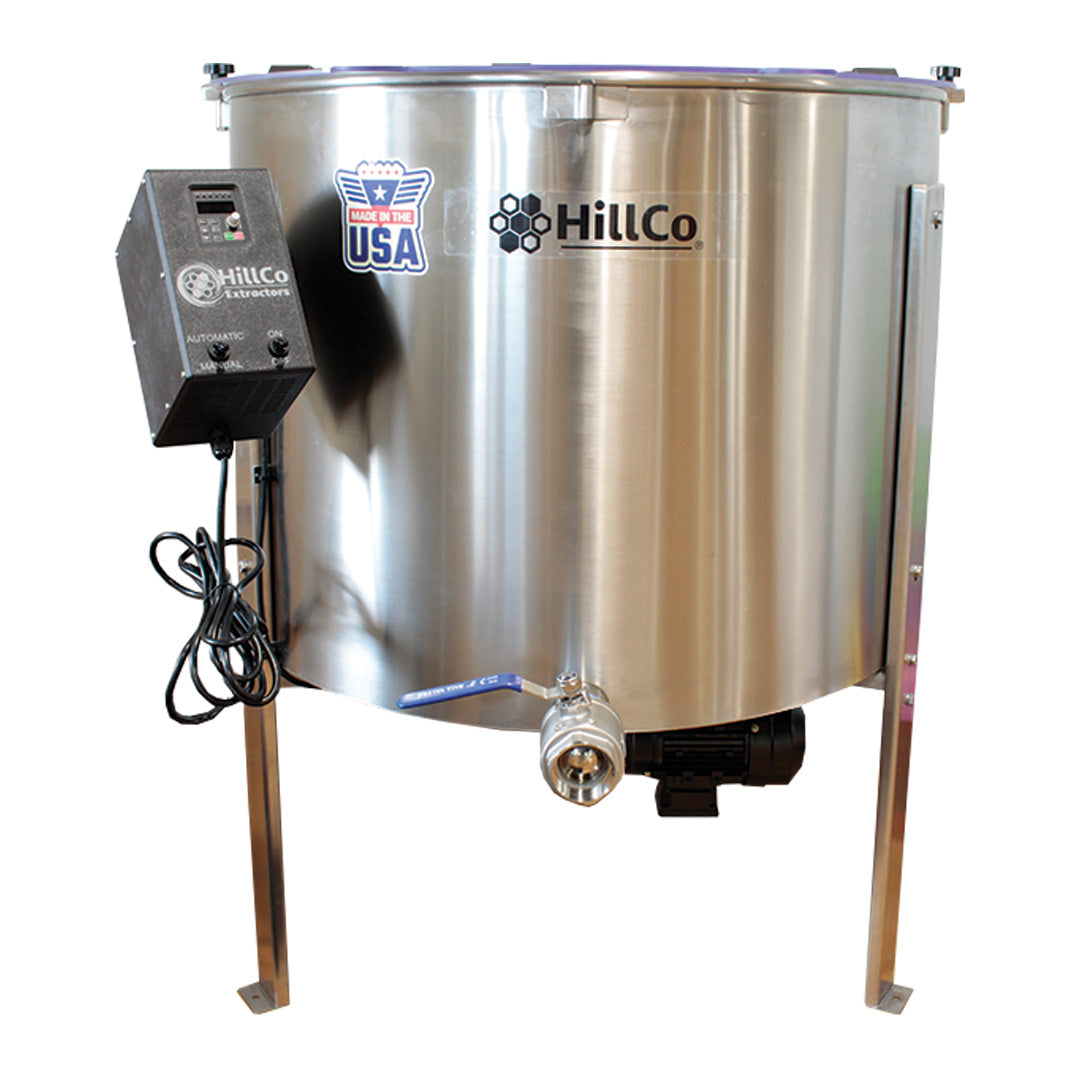

Maxx36 Honey Extractor - 36 Frame Radial
Regular price
$2,699.00
***This product will take 5-7 days to ship from the time of placing the order***
We've pulled out all the stops on this new "beast" of an extractor!
The Maxx36 is built to last with thicker and stronger components than we've ever used before.

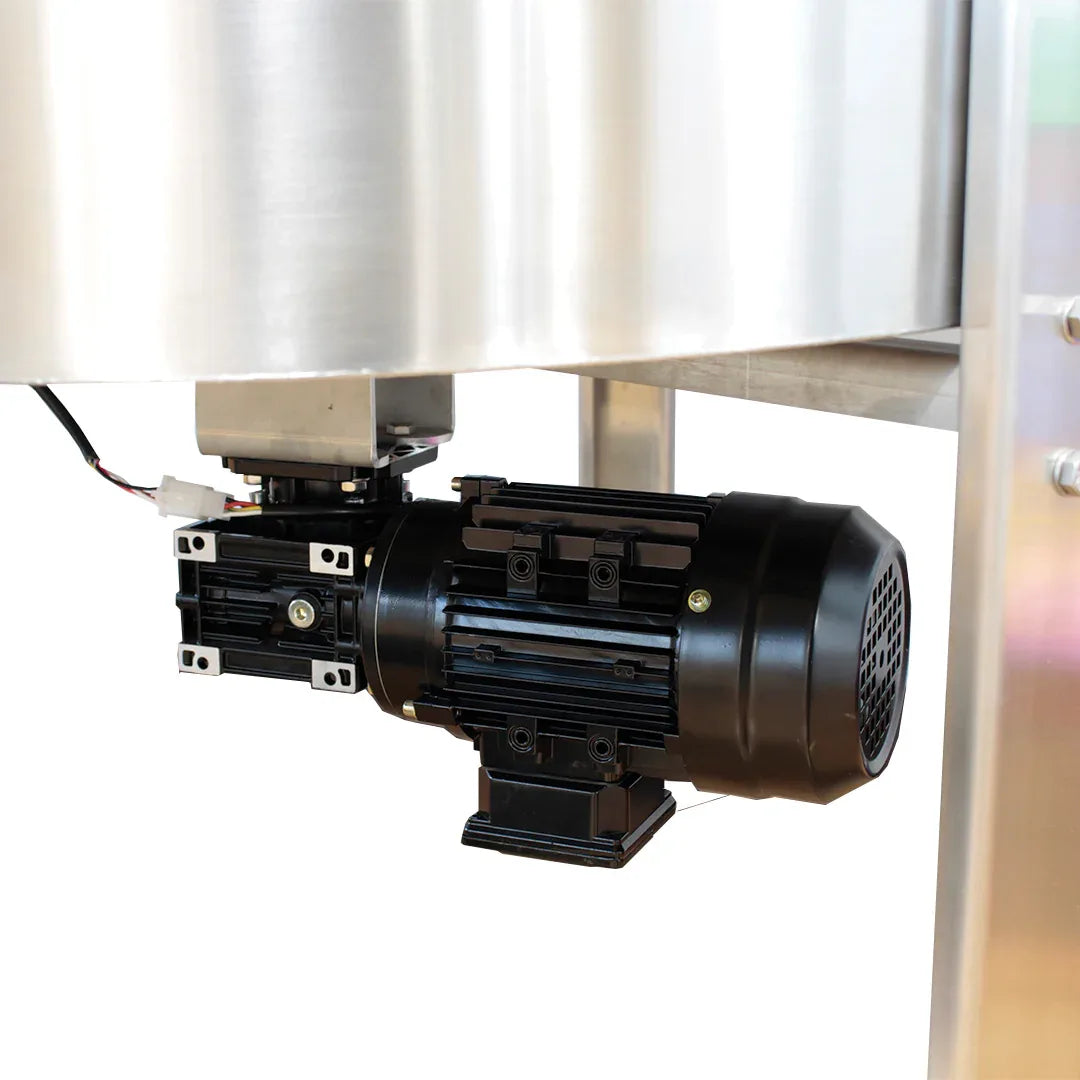

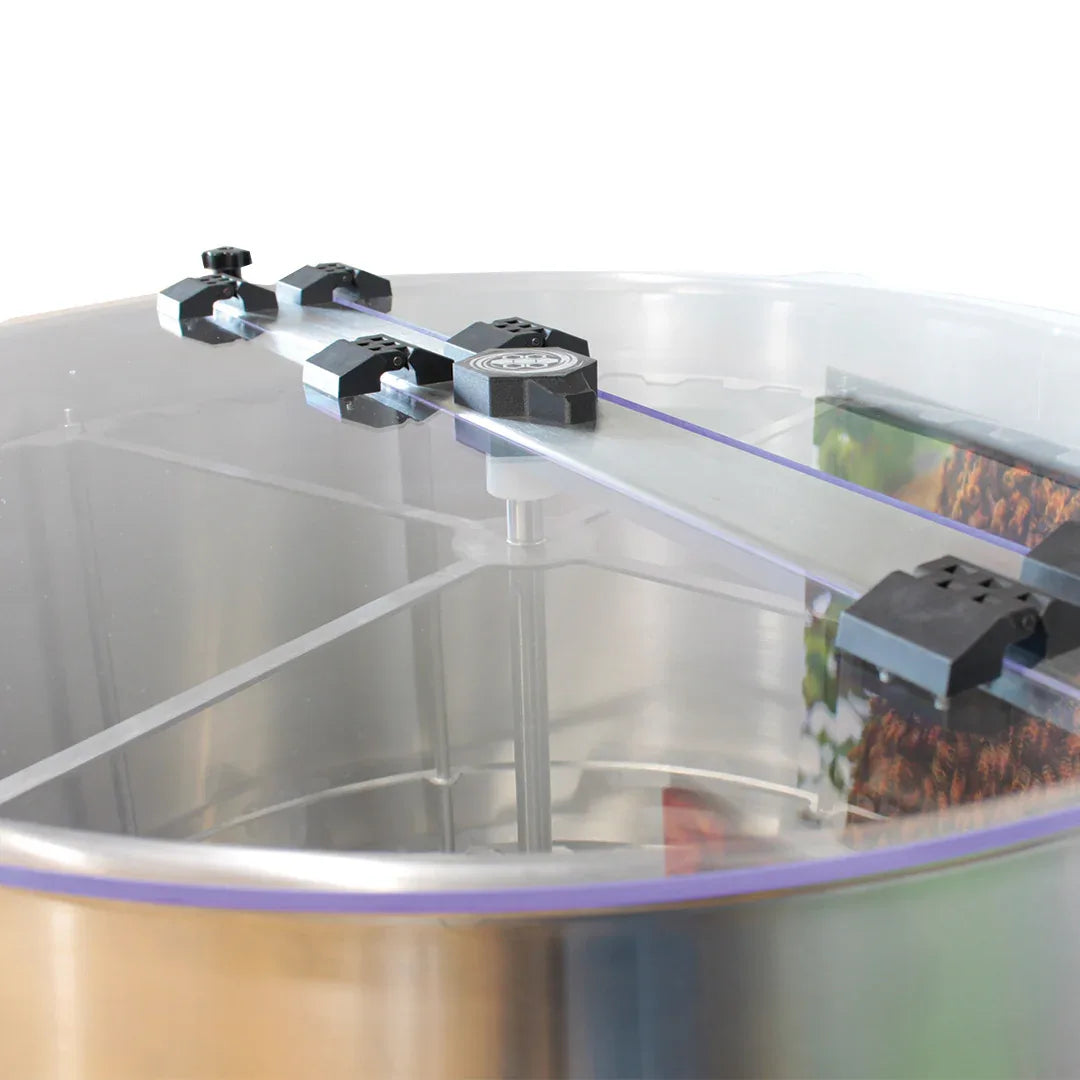

Featuring our new bottom-drive design! This offers a lower center-of-gravity for better balance, as well as a clutter-free top for easier frame access and cleaning.
Best of all, it's Made in USA!

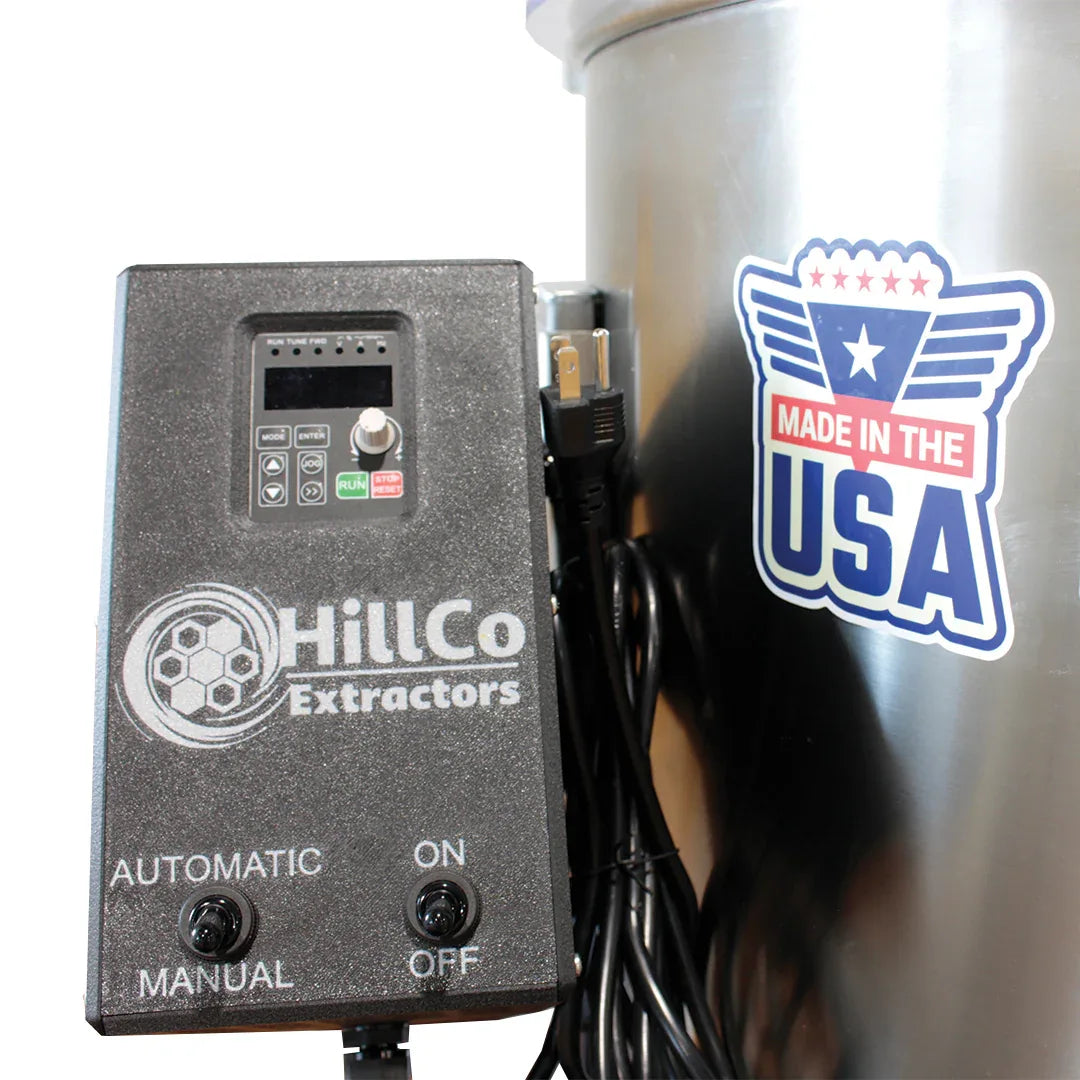

- Proven HillCo PowerMax drive system: an industrial grade motor, gearbox, and upgraded controller. This combination is smooth, quiet and durable. A great combination of simplicity and refinement, this drive system performs fabulously!
- 18 gauge, type 304 food-grade stainless steel tank - thickest in the industry!
- Ez-Drain honey gate design: the honey drain valve is located slightly below the tank floor, giving you a complete, seamless honey drain.

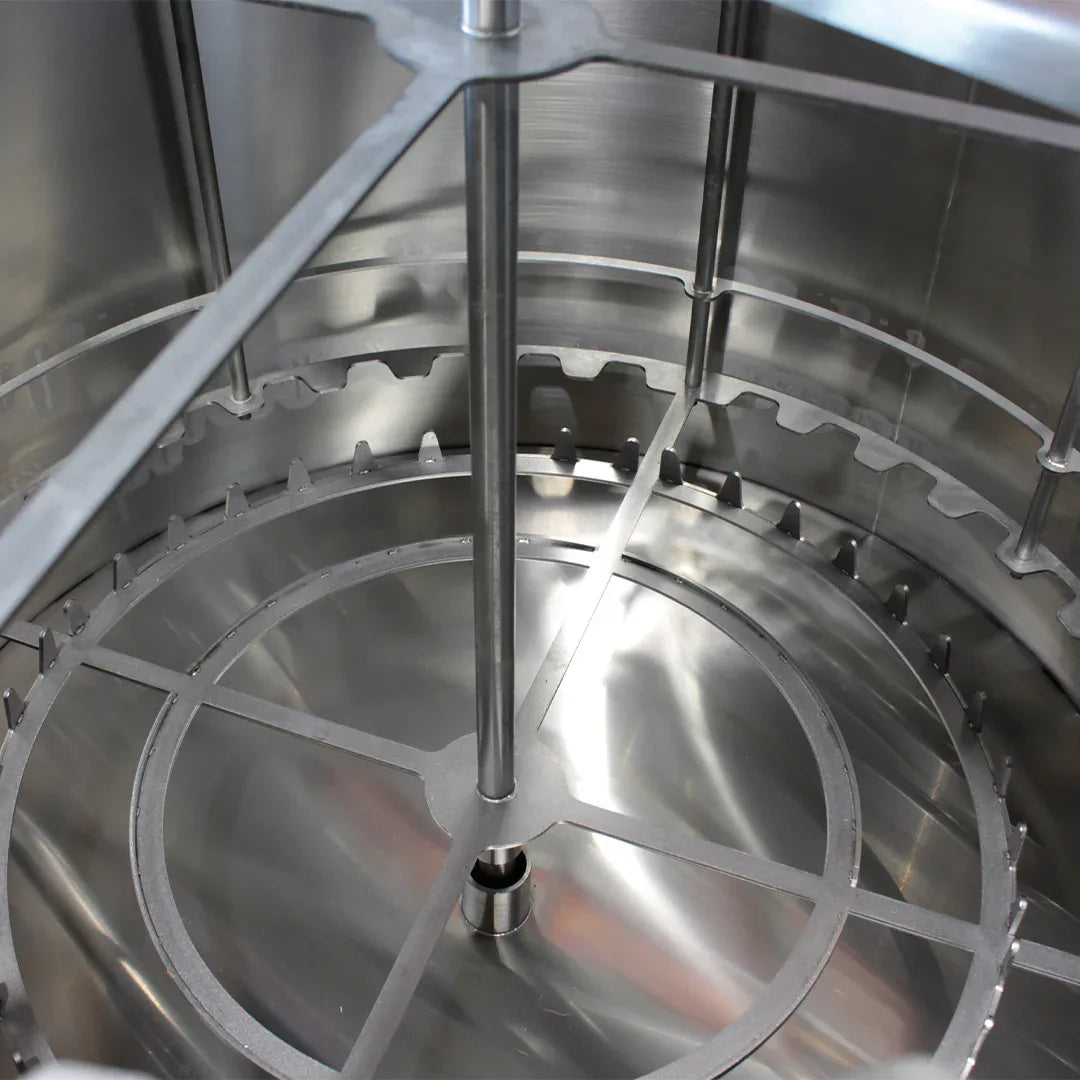

- Maxx extractor tank features a HillCo-exclusive tank bottom that slopes towards the front, ensuring that all your honey flows smoothly towards the gate. No tipping the tank, no hassle, it just works!
- Industry leading "10/Forever" Warranty: motor, gearbox, controller, wiring, and bearings are guaranteed for 10 years. The rest of the machine (tank, legs, reel, lids etc), are guaranteed forever! We have engineered a quality product, built with quality components, and we will stand behind it!
- All stainless parts are Made in USA! Drive system components are imported, but proven quality to last for many years!
- Free shipping to anywhere within the lower 48 US states!
Other features/specs:
- 3/4 horsepower PowerMax motor, 5:1 ratio worm-drive gearbox
- Plugs into normal 110v power outlets
- Extracts 36 medium/shallow, or 32 deep frames radially. (Can fit up to 36 deep frames, but it may be pretty tight)
- Grease-able lower ball bearing

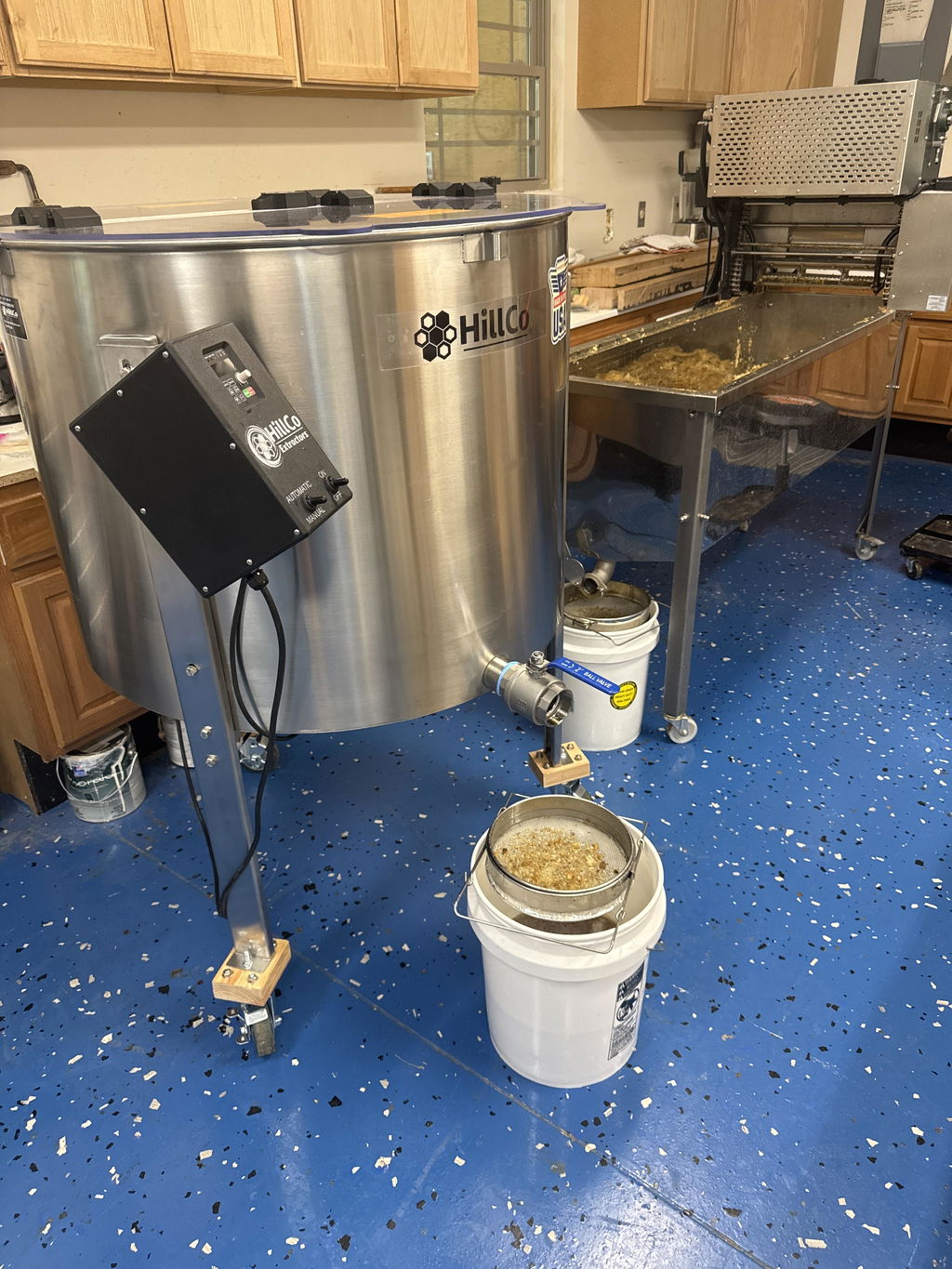

- 5 gallon bucket and strainer fit below the honey gate
- Tank diameter - 34"
- Width (at widest point) - 37"
- Overall height - 45"
- Weight - 250 lbs.
- Honey Drain - 2" male NPT (includes ball valve)
***The Large size Spring Feet Kit will work with this extractor (sold separately)***
