Manual or Motorized Honey
Extractor? How
to Choose?

Published: July 29, 2026 | By: HillCo Ship

SUMMARY

A manual honey extractor uses a hand crank to spin frames and separate honey by centrifugal force. A motorized honey extractor does the same thing with an electric motor. Manual extractors cost less and work well for small operations. Motorized extractors save time and effort on larger harvests. The right choice depends on hive count, frame volume, your time and budget.

Learn More

1.8K views 5 mint read minute read

Manual or Motorized Honey Extractor? How to Choose?

Manual vs. Motorized Honey Extractor: What's the Difference?

Both are centrifugal honey extractors. They hold uncapped frames in a drum and spin them to eject honey out of the comb. The difference is what powers the spin. A manual honey extractor uses a hand crank connected to gears. A motorized honey extractor uses an electric motor with speed control. HillCo carries both types in its honey extractor lineup, from three-frame manual models to larger motorized units.

Tangential vs. Radial Design

Inside the tank of the extractor is a “reel” that holds and secures uncapped frames while they are spun. Reels are designed to hold frames in a tangential or radial configuration. Tangential configuration positions frames parallel with the walls of the tank. One side of the frame faces the inner tank wall; the other side faces the center of the cage. In tangential configuration, only one side of the frame is extracted at a time. The frames must be flipped and spun again to extract the other side.

A radial configuration holds the frames like the spokes of a wagon wheel. The top bars are positioned facing the inner tank wall. Honey is slung from both sides of the frame at once, assisted by the upward angle that bees build their comb. Frames do not need to be flipped or spun a second time.

How Manual Honey Extractors Work

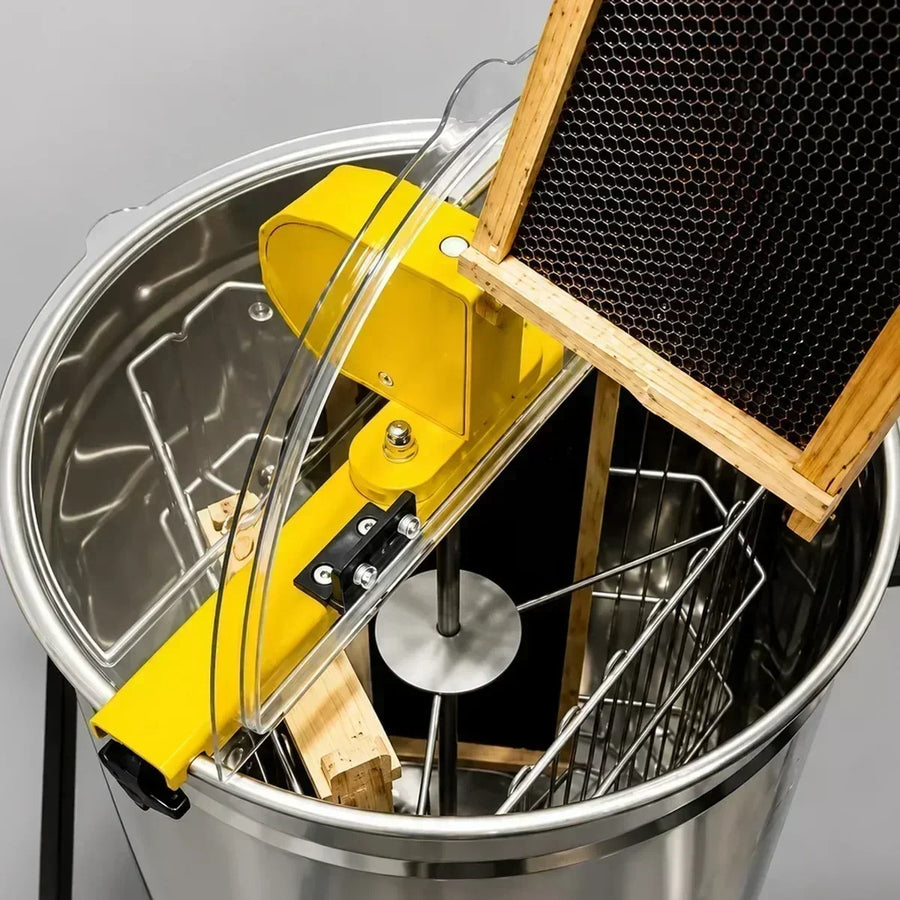

A manual honey extractor spins frames using a hand crank attached to a gear system. The beekeeper controls speed by turning faster or slower. Most manual extractors hold two to eight frames at a time. Honey is thrown against the drum wall by centrifugal force, runs down the sides, and drains through a gate valve at the bottom. Frames need to be uncapped before loading, regardless of the extractor type.

How Motorized Honey Extractors Work

A motorized honey extractor replaces the hand crank with a motor and a speed controller. The beekeeper loads frames, sets the speed, and lets the electric motor do the spinning. Most motorized honey extractors offer variable speed control, which lets you start slow to protect fresh comb and ramp up as honey clears. Electric extractors range from small two-frame models up to large radial units that hold 20 or more frames at once. A motorized radial honey extractor loads frames like spokes in a wheel, so both sides extract at the same time without flipping.

Manual vs. Motorized: Side-by-Side

	Manual Honey Extractor	Motorized Honey Extractor
Power source	Hand crank	Electric motor
Typical capacity	2 to 8 frames	8 to 20+ frames
Speed control	Manual (crank speed)	Variable speed dial
Physical effort	High, especially over long sessions	Low, motor does the work
Time	Slow – small capacity and possible tangential configuration extends extraction time	Fast – Can extract a full load of frames in less than 5 minutes (with added Spring Feet)
Cost	Lower upfront	Higher upfront, saves time long-term
Best for	Small apiaries, Hobbyists	Serious Hobbyist, Sideliners, Commercial operations
Maintenance	Minimal parts to maintain. Keep clean and dry. Grease friction points annually with food grade lube.	Motor and electrical components. Keep clean and dry, grease friction points annually with food grade lube.

Key Factors to Consider

Harvest volume: A beekeeper with 2 to 5 hives may only process a few dozen frames per season, and a manual extractor handles that comfortably. As your apiary grows, investing in a motorized extractor allows you to extract more honey in less time.

Budget: Manual extractors cost significantly less upfront. Motorized models cost more but reduce physical work and extraction time.

Frame compatibility: Make sure the extractor fits the frame size you use. Most HillCo extractors handle standard Langstroth deep, medium, and shallow frames. We also offer a Layens frame extractor that accommodates the dimensions of the Layens frame as well as Langstroth frames.

Which Is Right for You?

Neither type is universally better. The best honey extractor is the one that matches your actual harvest, not the one with the most features.

1 to 5 hives with a small seasonal harvest: a manual honey extractor is practical and affordable, although some who have plans to grow will go ahead and start with a motorized extractor.

10 or more hives, or larger capacities: a motorized honey extractor saves time and reduces fatigue.

Growing your operation: starting manual and upgrading to electric as hive counts increase is a common path but if you forecast growing from 3 hives this year to 18 or 22 hives in 2 years, you may consider purchasing a larger, motorized extractor that you can grow into.

Radial and Tangential Centrifugal Extractors

All honey extractors use centrifugal force. The difference is how frames sit inside the drum.

Tangential: Frames sit flat against the wall. You extract one side, flip the frame, then extract the other. Most small manual extractors use this design.
Radial: Frames load like spokes in a wheel, extracting both sides at once. Most larger motorized extractors use radial design for faster processing.

Some models will extract mediums and shallow frames radially while extracting the larger deep frames tangentially. The HillCo E3, E8 and Maxx12 extractors work both radially and tangentially depending on the frame size.

Is a Manual or Motorized Honey Extractor Better?

A manual honey extractor is a good fit for hobbyists and small-scale beekeepers processing a limited number of frames each season. It costs less and works without electricity. A Motorized honey extractor is better for serious hobbyists, sideliners and commercial beekeepers handling larger harvests where speed and reduced physical effort matter. HillCo carries both manual and electric extractors built for all beekeepers.

The best honey extractor depends on hive count, harvest volume, budget, and how much physical work the beekeeper wants during extraction. Many start with a manual honey spinner and move to a motorized honey extractor as hive counts grow. Once honey is extracted, the next step is transfer and bottling, so having that equipment staged before harvest matters just as much.
